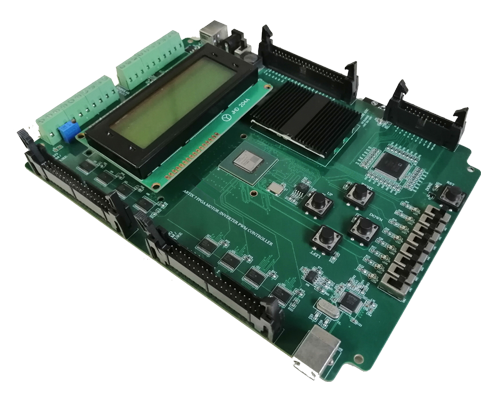

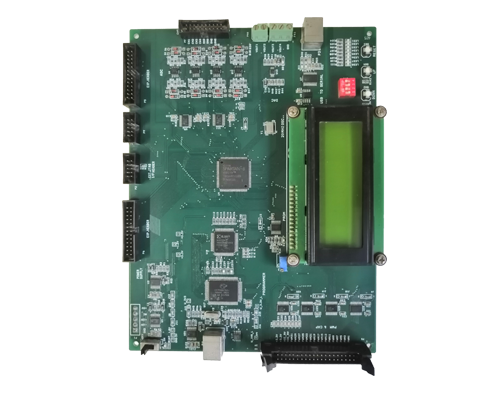

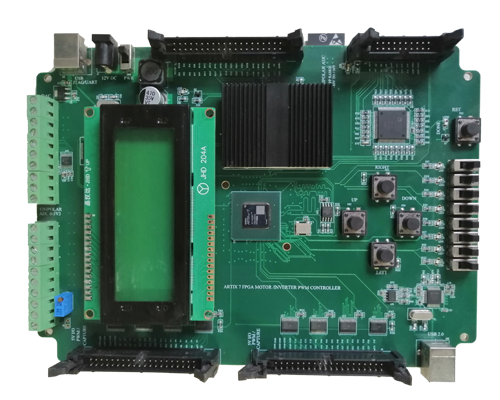

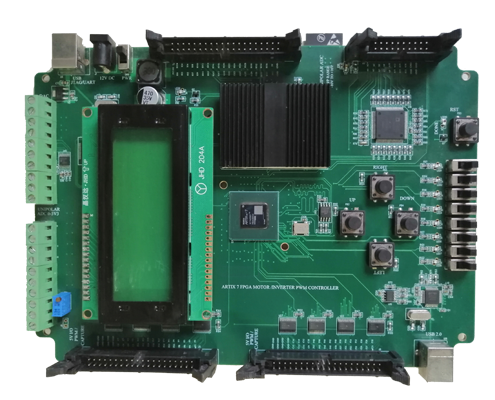

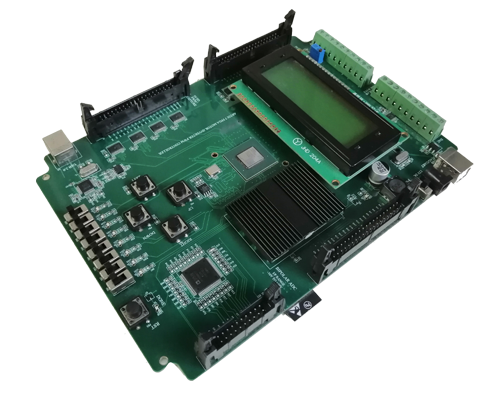

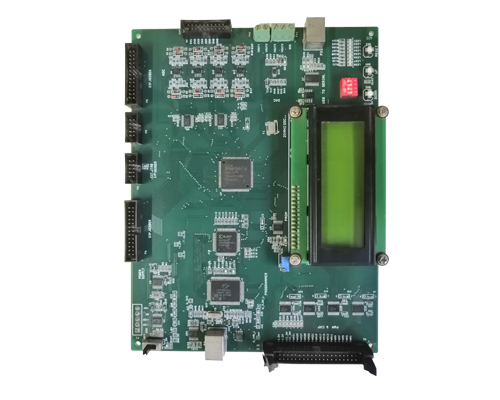

Artix7XC7A200T FPGA

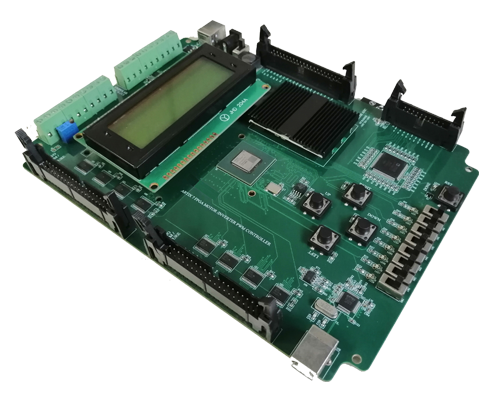

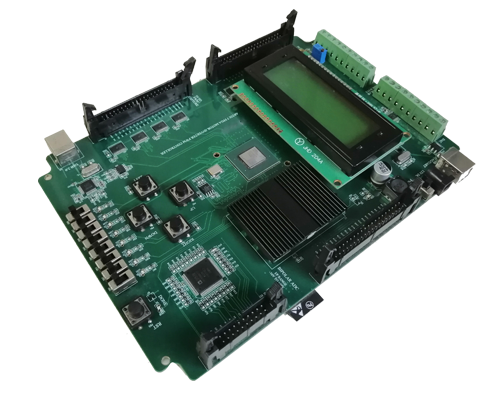

Artix 7 200T FPGA Motor / Inverter PWM Controller features the most powerful and high-density FPGA from Xilinx Artix 7 FPGA family. It contains XC7A200T FPGA with logic cells of 215,360, which is 6.5 times more logic elements than our mid-level XC7A35T FPGA board, 740 high-performance digital signal processing (DSP) slices that can tackle compute-intensive functions such as PID Controller, Clark/Park transforms, and Space Vector PWM.
The Controller is alsoincludes all the important features to implement motor drive applications such as Isolated onboard power module, Isolated USB UART, 16-channel bipolar ADC with an operating range of -10v to +10v, 8-channel unipolar ADC, 8-channel DAC, USB 2.0 communication which can send high-Speed data to PC, 64 no of 5v I/O, 36 no of 3.3v I/O, 20×4 LCD, USB JTAG, 50MHz onboard clock which can be multiplied up to 400MHz, 8 SPDT Switch, 8 LED and 4 Push Buttons. Also includes Wi-Fi/Bluetooth module. So, all the feedback and sensor data from the motor drive applications can be monitored from the cloud (IoT) through Wi-Fi or it can be remotely controlled through Bluetooth.
The Controller Board’s power of programmability gives industrial automation designers a highly efficient to traditional motor control units (MCUs). The parallel-processing power, fast computational speeds, and connectivity versatility of Xilinx FPGAs can accelerate the implementation of advanced motor control algorithms such as Field Oriented Control (FOC).
Features
- Xilinx XC7A200T Artix 7 FPGA IC
- 128 SPI FLASH Memory
- 8 SPDT Slide Switch
- On-Board USB JTAG Programmer
- USB to UART Interface
- WiFi
- Bluetooth 4.0 BLE
- 50 MHz Clock
- Bipolar ADC 16 channel
- Unipolar ADC 8 channel
- SPI DAC
- 2×4 LCD Display
- 4 Push Button
- 8 LEDs
- 100 I/O’s on board Bipolar ADC 16 channel

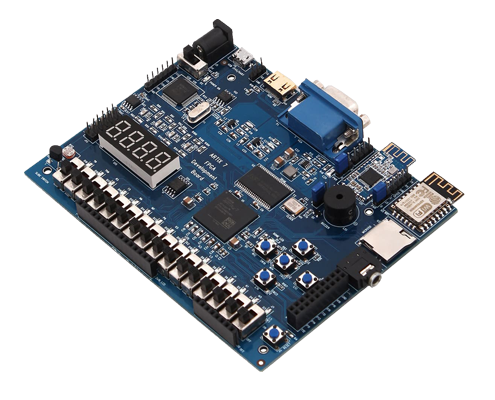

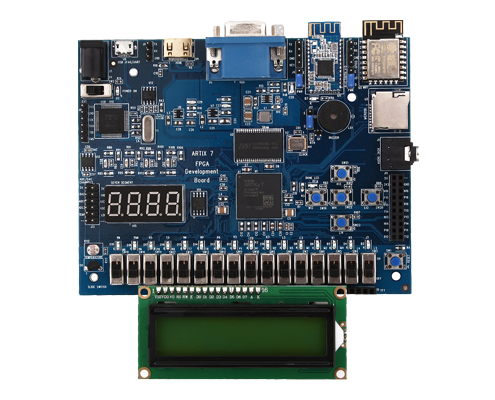

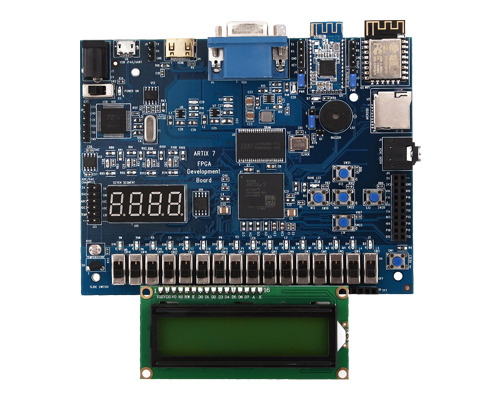

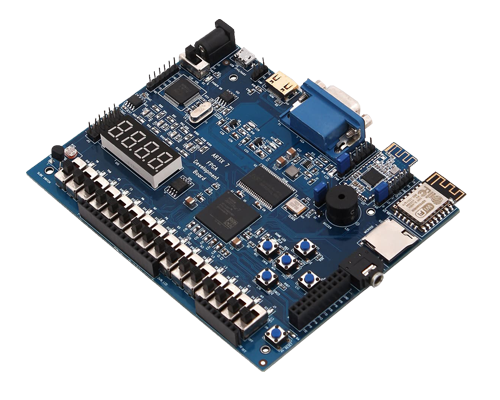

Artix 7 FPGA

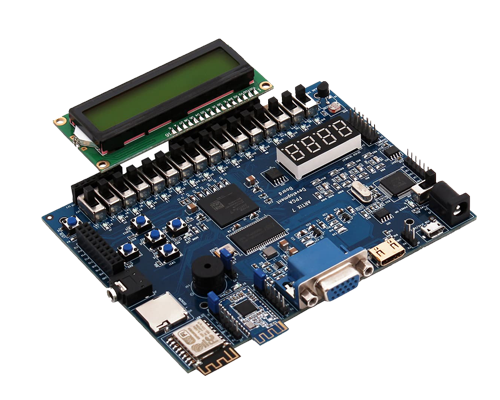

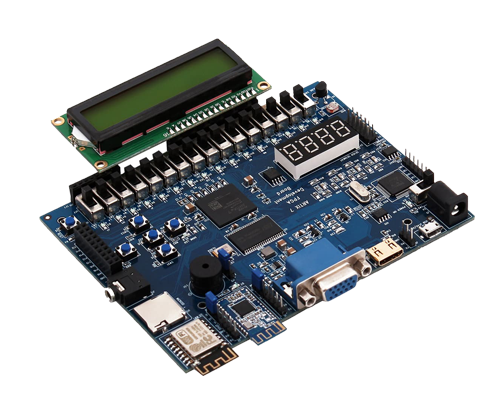

Artix 7 FPGA Development board is upgraded version of Spartan 6 board. It is exclusively designed for the latest vivado Design Suite. The Artix 7 board is build around Xilinx Artix 7 XC7A35T FPGA IC. The features includes external memory SDRAM, HDMI Out, Micro SD, WiFi, Bluetooth, ADC, DAC, LCD, 7 Segment, camera, TFT, Buzzer, Switches, buttons and LEDs interface. Microblaze softcore processor design can be easily implemented with SDRAM using vivado SDK.
FPGA kit is ready to use Laboratory kit for ECE Curriculum. It can be useful for developing basic to advanced level digital circuits.
Advantage of FPGA kit is easy to implement plenty of applications ranging from Wireless control, Image/video Processing, Internet of Things without additional interfaces
Features
- Xilinx XC7A35T Artix 7 FPGA IC
- 256Mb SDRAM
- 8MB SPI FLASH Memory
- On-Board USB JTAG Programmer
- USB to UART Interface
- 4 Digit Seven Segment Display
- WiFi 802.11 b/g/n
- Bluetooth 4.0 BLE
- 12 bit VGA Interface
- HDMI Out
- 50 MHz Clock
- ADC 4 channel
- Temperature Sensor
- LDR Interface
- SPI DAC
- 2×16 LCD Display
- Micro SD
- 16 Slide switches
- 5 Push Button
- 5v Buzzer
- 16 LEDs
- 31 External I/O’s

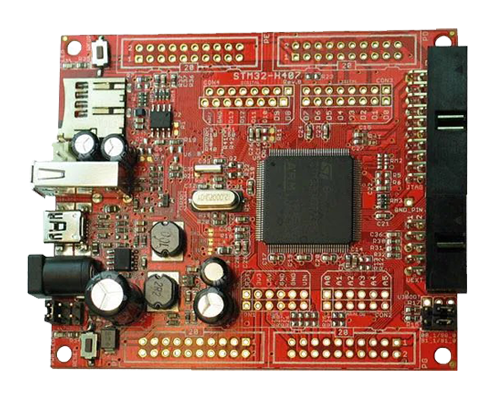

Cortex M4

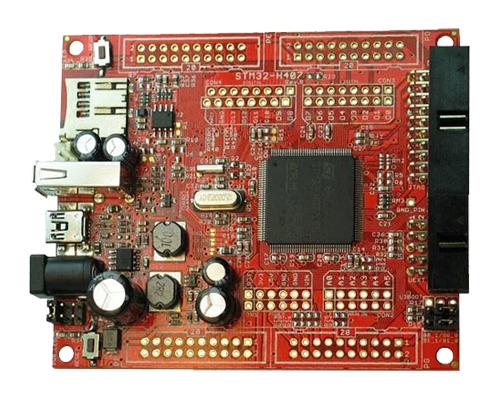

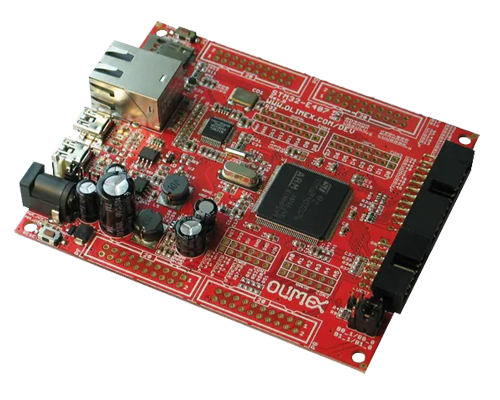

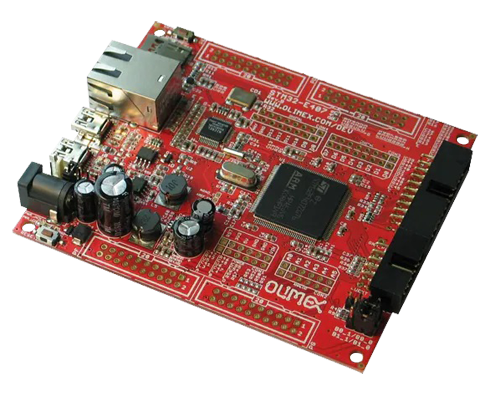

STM-H407 is a low-cost entry board for developing custom applications with STM32F407ZGT6 Cortex M4 microcontrollers from ST. This board has plenty of resources and all GPIO ports are available on extension connectors
- STM32F407ZGT6 Cortex-M4 210DMIPS
- 1MB Flash
- 196KB RAM
- 3×12-bit 2.4 MSPS A/D
- 2×12-bit D/A converters
- USB OTG HS
- Ethernet
- 14 timers
- 3 SPI
- 3 I2C
- Ethernet
- 2 CANs
- 3 12-bit ADCs
- 2 12-bit DACs
- 114 GPIOs
- JTAG connector with ARM 2×10 pin layout for programming/debugging
- UEXT connector
- USB host
- USB-OTG
- Power and user LEDs
- Reset and user buttons
- PCB: FR-4, 1.5mm (0.062″), solder mask, silkscreen component print
- SD-card

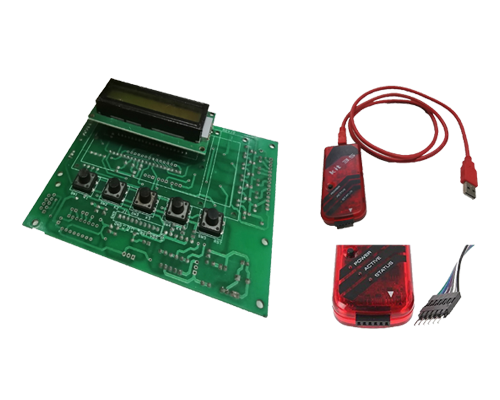

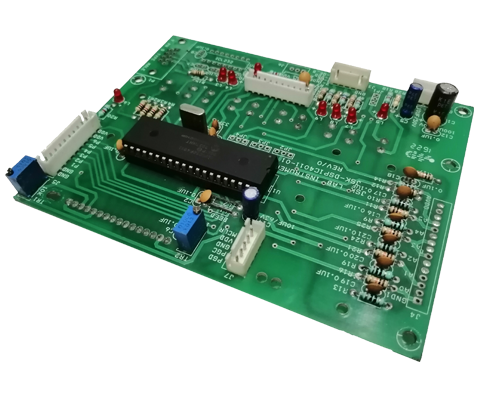

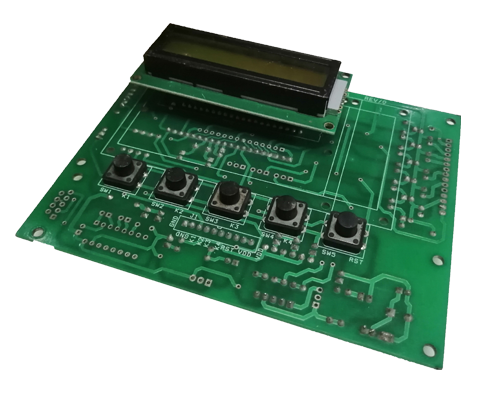

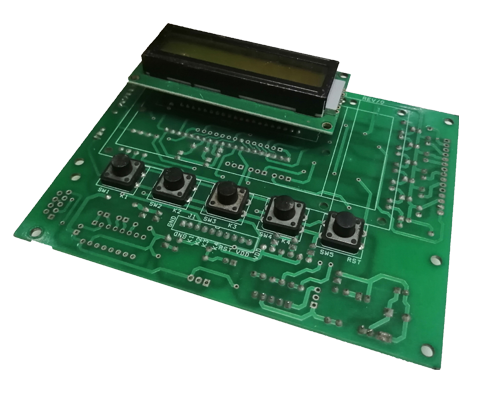

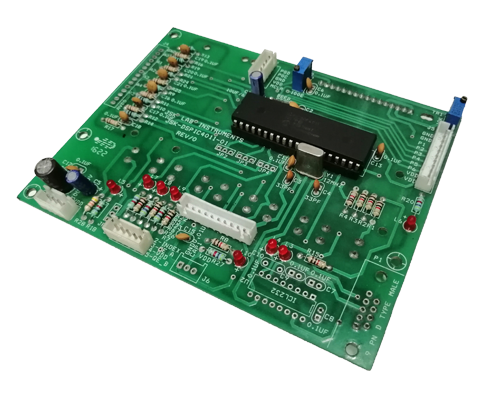

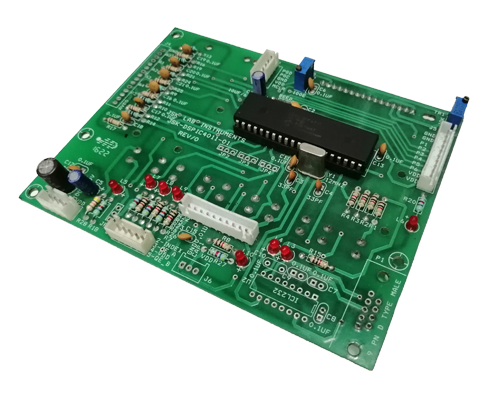

DSP

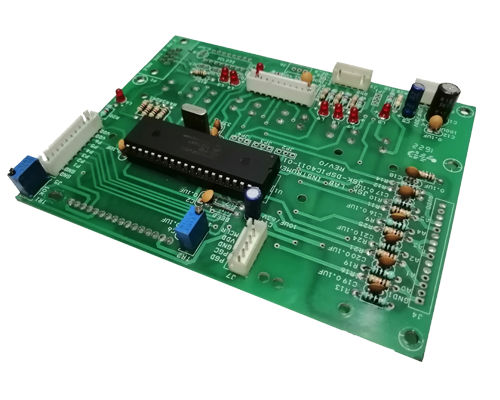

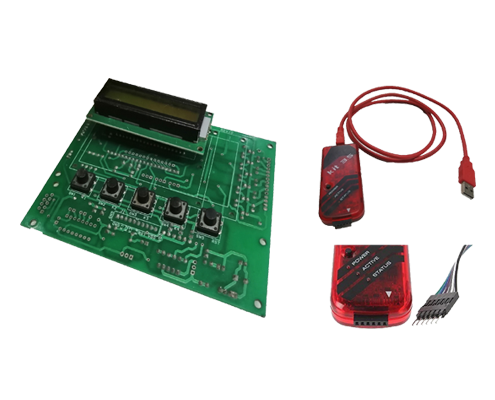

The PG164130 is a PICkit 3 in circuit debugger/programmer uses in circuit debugging logic incorporated into each chip with Flash memory to provide a low cost hardware debugger and programmer. The MPLAB PICkit 3 allows debugging and programming of PIC and dsPIC flash microcontrollers using the powerful graphical user interface of the MPLAB integrated development environment (IDE).
Features
- PICkit 3 allows debugging and programming of PIC and dsPIC Flash MCU’s
- Expensive sockets or adapters are not required
- Minimum of additional hardware needed for debug
- Built in over voltage/short circuit monitor
- Supports low voltage up to 2volts
- MPLAB PICkit 3 contains full speed USB interface to host PC
- Compatible with MPLAB ICD 2, MPLAB ICD 3 and MPLAB REAL ICE
- Erase of program memory space with verification
- Program up to 512K byte flash with the Programmer to go function
- Freeze peripherals at breakpoint

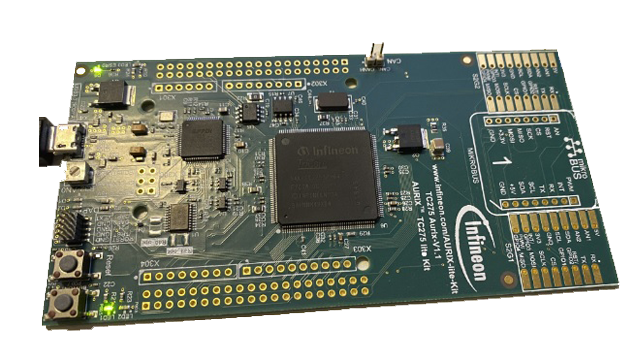

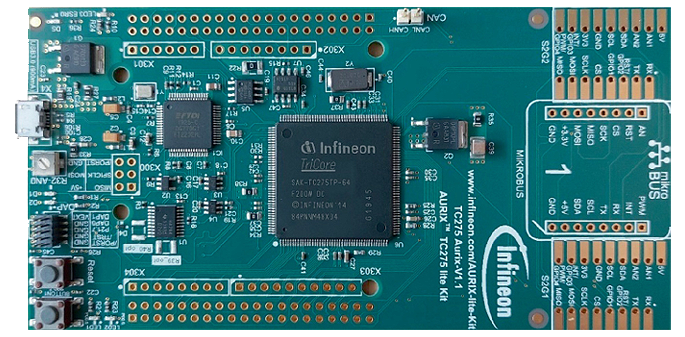

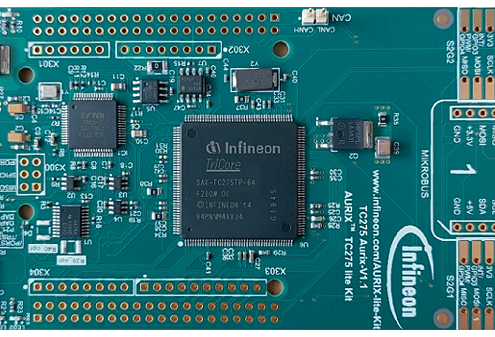

infineon
Summary of Features:
- Arduino Connector
- Arduino ICSP Connector
- Voltage Regulator 5V to 3.3V
- Optional 0-Ohm resistors (R39_opt/R40_opt in 1210 imperial)
- Arduino Connector (Digital)
- 20 MHz Crystal for AURIX™ TM and 12 MHz Crystal for OCDS
- Mikrobus Connector for WIFI/BLE
- Infineon CAN Transceiver TLE9251VSJ & CAN Connector
- Pin Connector X2
- Power LED (D5)
- LEDs D1/D2 for ADBUS7/4 and LED3 for ESR0 Signal (low-active)
- Arduino Pin Connector (POWER & ANALOG IN)
- Potentiometer (10 kOhm) and solderable 0 Ohm resistor (R33 in 0805 imperial)
- Micro USB (USB3.0 recommended)
- 10-pin DAP Connector
- Reset Button
- 2 x Shield2GO Connector for Infineon Maker Shields

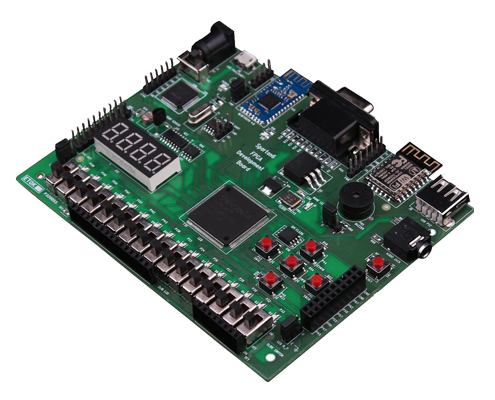

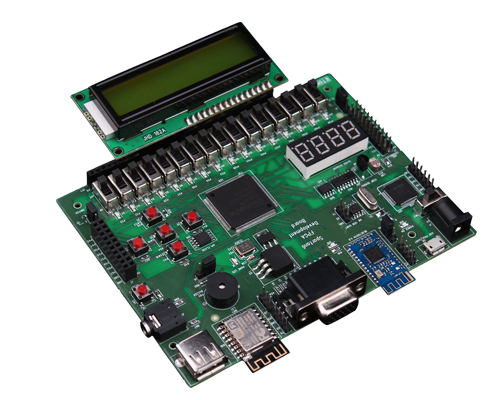

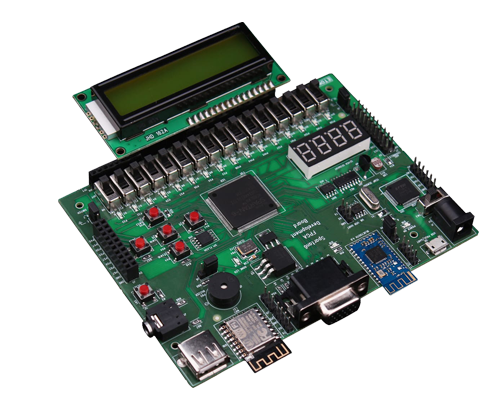

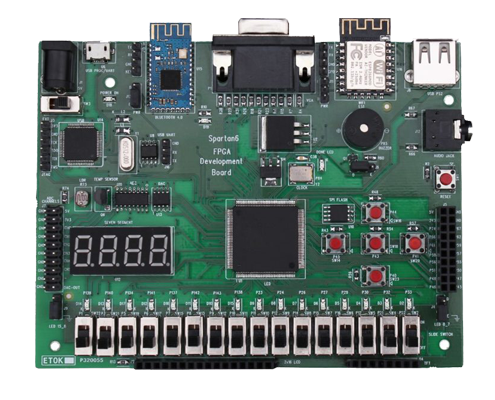

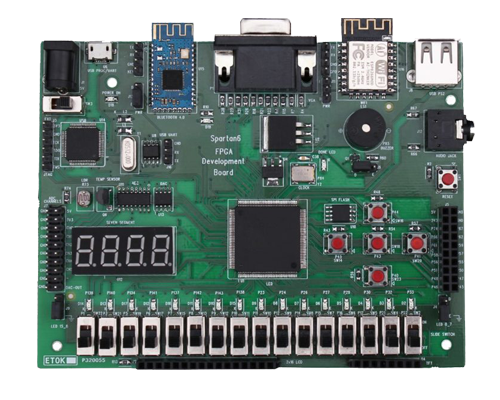

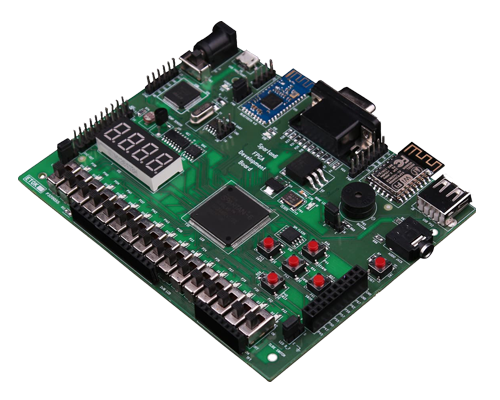

Spartan 6 FPGA-lx9
Spartan 6 FPGA board is the low cost and feature rich development board with Xilinx Spartan 6 FPGA. The FPGA kit consist of 26 External I/O, USB UART, USB JTAG, Wi-Fi, Bluetooth, SPI FLASH, ADC, DAC, LCD, 7 segment, VGA, PS2, Buzzer, Temperature Sensor and LDR.
Spartan-6 FPGA kit is ready to use Laboratory kit for ECE Curriculum. It can be useful for developing basic to intermediate level digital circuits.
Advantage of Spartan-6 FPGA kit is easy to implement plenty of applications ranging from Wireless control, Image/video Processing, Internet of Things without additional interfaces.
Features
- Xilinx XC6SLX9 Spartan-6 FPGA
- 8Mb SPI FLASH Memory
- On-Board USB JTAG Programmer
- USB to UART Interface
- 4 Digit Seven Segment Display
- Wi-Fi 802.11 b/g/n
- Bluetooth 4.0 BLE
- 12-bit VGA Interface
- 8 Channel SPI ADC
- 50 MHz Clock
- Temperature Sensor
- LDR Interface
- SPI DAC
- 2×16 LCD Display
- PS2 compatible USB interface
- 16 Slide switches
- 5 Push Button
- 5v Buzzer
- 16 LEDs
- 26 External I/O’s

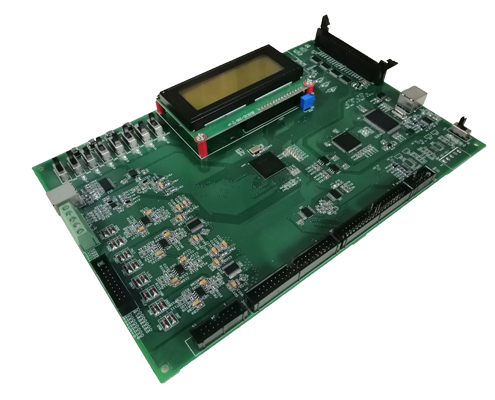

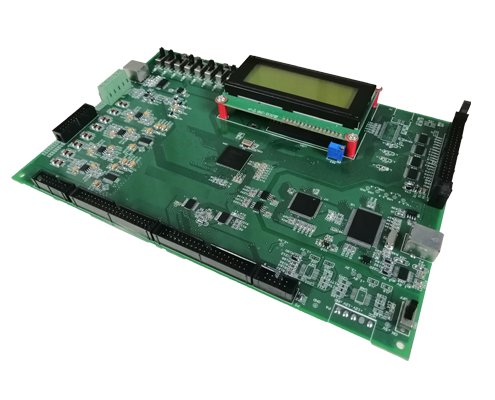

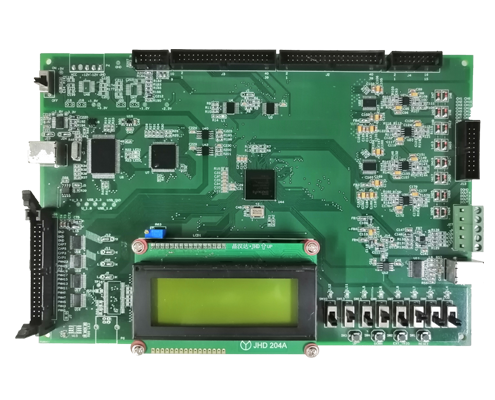

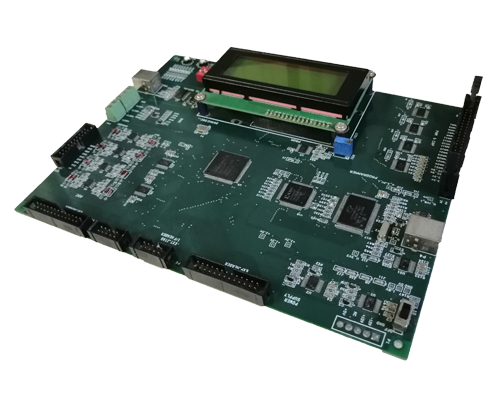

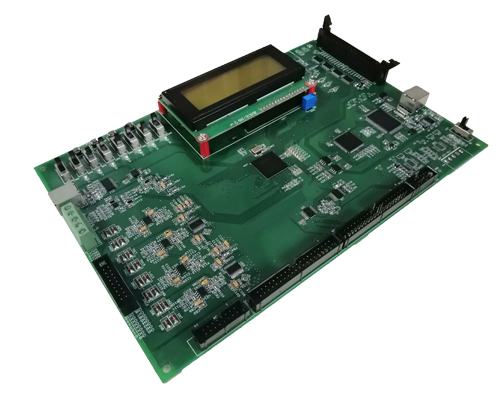

XILINX_SP6_LX25FPGA

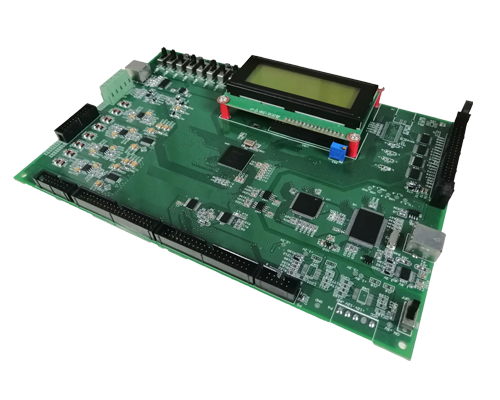

FPGA _SP6_LX25 is an easy-to-use FPGA Low-cost board featuring Spartan-6 FPGA. It is specially designed for research, experimenting and learning system design with FPGAs. Spartan®-6 devices are the most cost-optimized FPGAs, offering industry leading connectivity features such as high logic-to-pin ratios, small form-factor packaging, and a diverse number of supported I/O protocols. Built on 45nm technology, the devices are ideally suited for a range of advanced bridging applications found in automotive infotainment, consumer, and industrial automation.
Features
- On-Board USB JTAG Programmer
- USB to UART Interface
- 20 MHz Clock
- Bipolar ADC 16 channel
- SPI DAC
- Power Supply Section
- Spartan-6 XC6SLX25
- PROM &Clock
- ADC Section
- DAC Section
- Switch & LED
- 5V Input & Output Connector
- LCD Interface Section
- UP & DOWN Switch
- RESET Key
- External JTAG Programming Header
- GPIO Expansion Header SPARTAN 6 FPGA CONTROLLER
- 100 input/output with 5V Level.
- Isolated serial communication interface through USB connector.
- 8 position user DIP switch.
- 8 user LEDs.
- 2 no of input push switches.
- 20×4 (or 16×2) LCD interface header.
- External JTAG header for programming

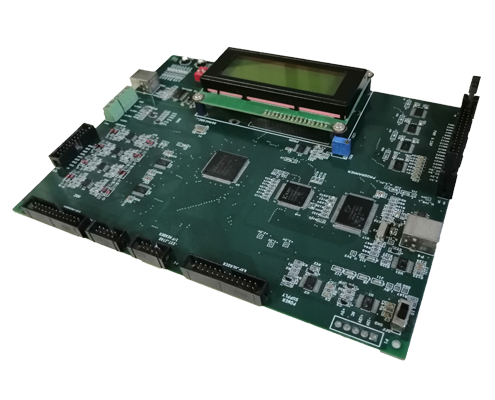

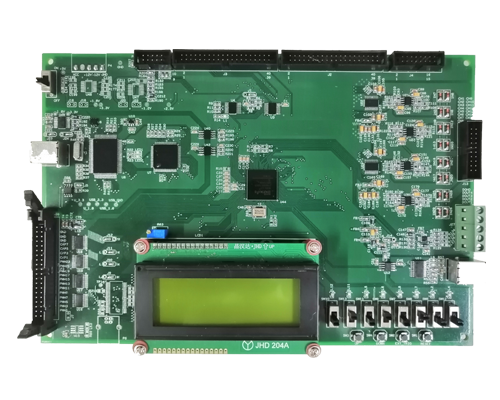

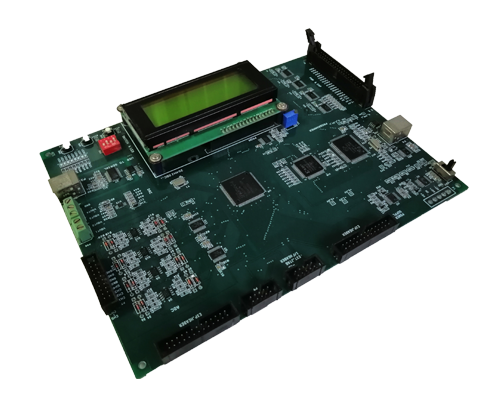

XILINX_SP6_LX9FPGA

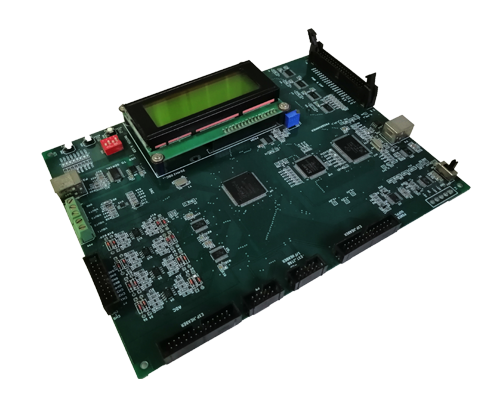

XILINX_SP6_LX9 is an easy to use FPGA Low cost board featuring Xilinx Spartan-6 FPGA. It is specially designed for research, experimenting and learning system design with FPGAs. Spartan ®-6 devices are the most cost-optimized FPGAs, offering industry leading connectivity features such as high logic-to-pin ratios, small form-factor packaging, and a diversenumberof supported I/Oprotocols.Builton 45nm technology,the devices are ideally suited for a range of advanced bridging applications found in automotive infotainment, consumer,andindustrialautomation
Features
- On-Board USB JTAG Programmer
- USB to UART Interface
- 20 MHz Clock
- Bipolar ADC 16 channel
- Unipolar ADC 8 channel
- SPI DAC
- Power Supply Section
- Spartan-6XC6SLX9-TQG144
- PROM &Clock
- ADC Section
- DAC Section
- Switch&LED
- 5V Input & Output Connector
- LCD Interface Section
- UP & DOWN Switch
- RESET Key
- External JTAG Programming Header
- GPIO Expansion Header SPARTAN 6 FPGA CONTROLLER
- USB to Serial Converter
- 32 input/output with 5V Level.
- Isolated serial communication interface through USB connector.
- 4 position user DIP switch. 8user LEDs. 2 noof input push switches.
- 20 x 4 (or 16 x 2)LCD interface header.
- External JTAG Header for programming

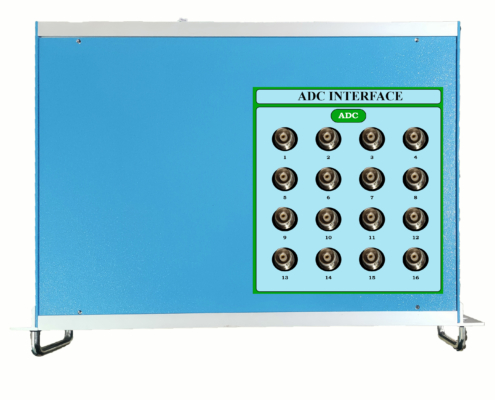

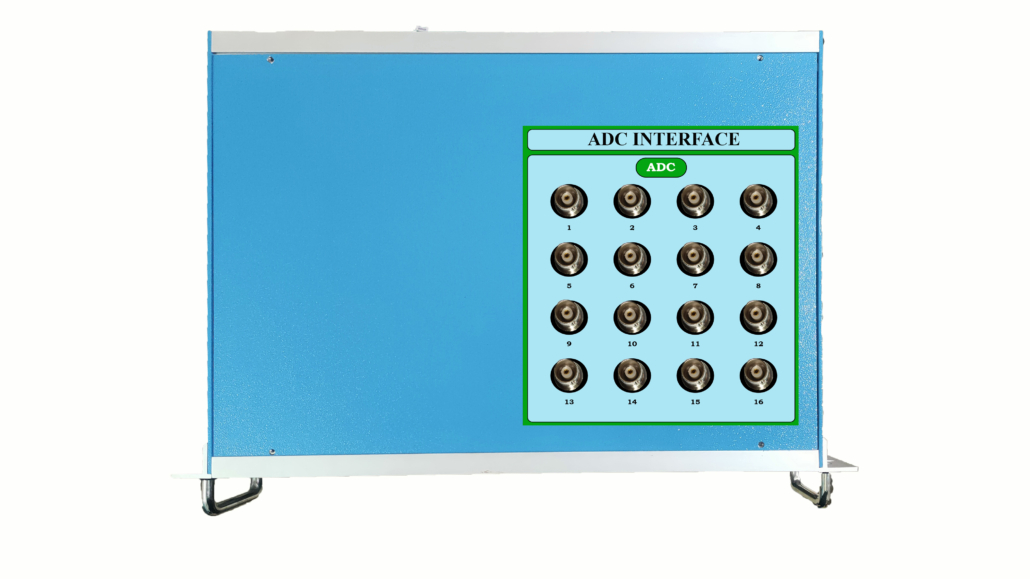

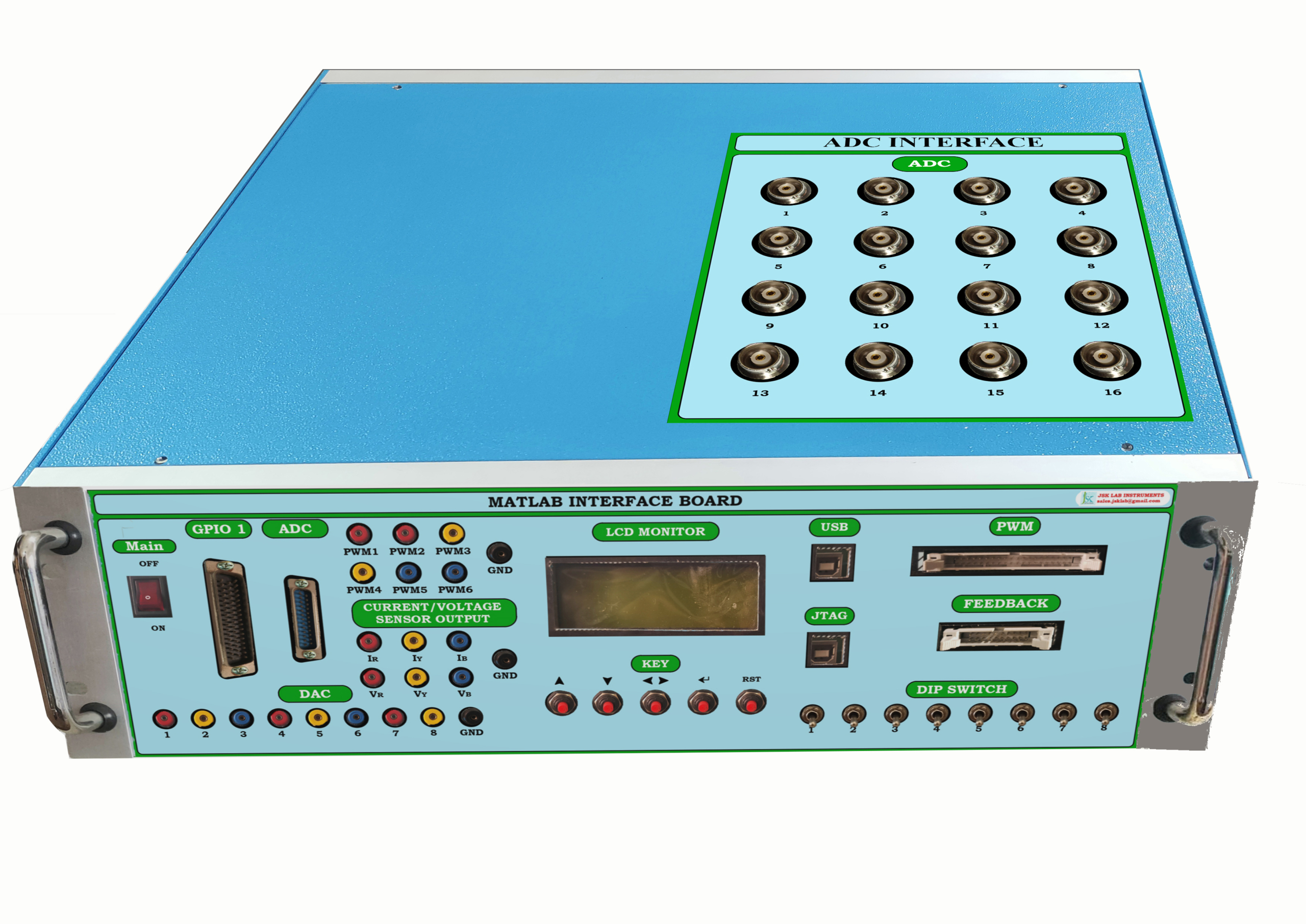

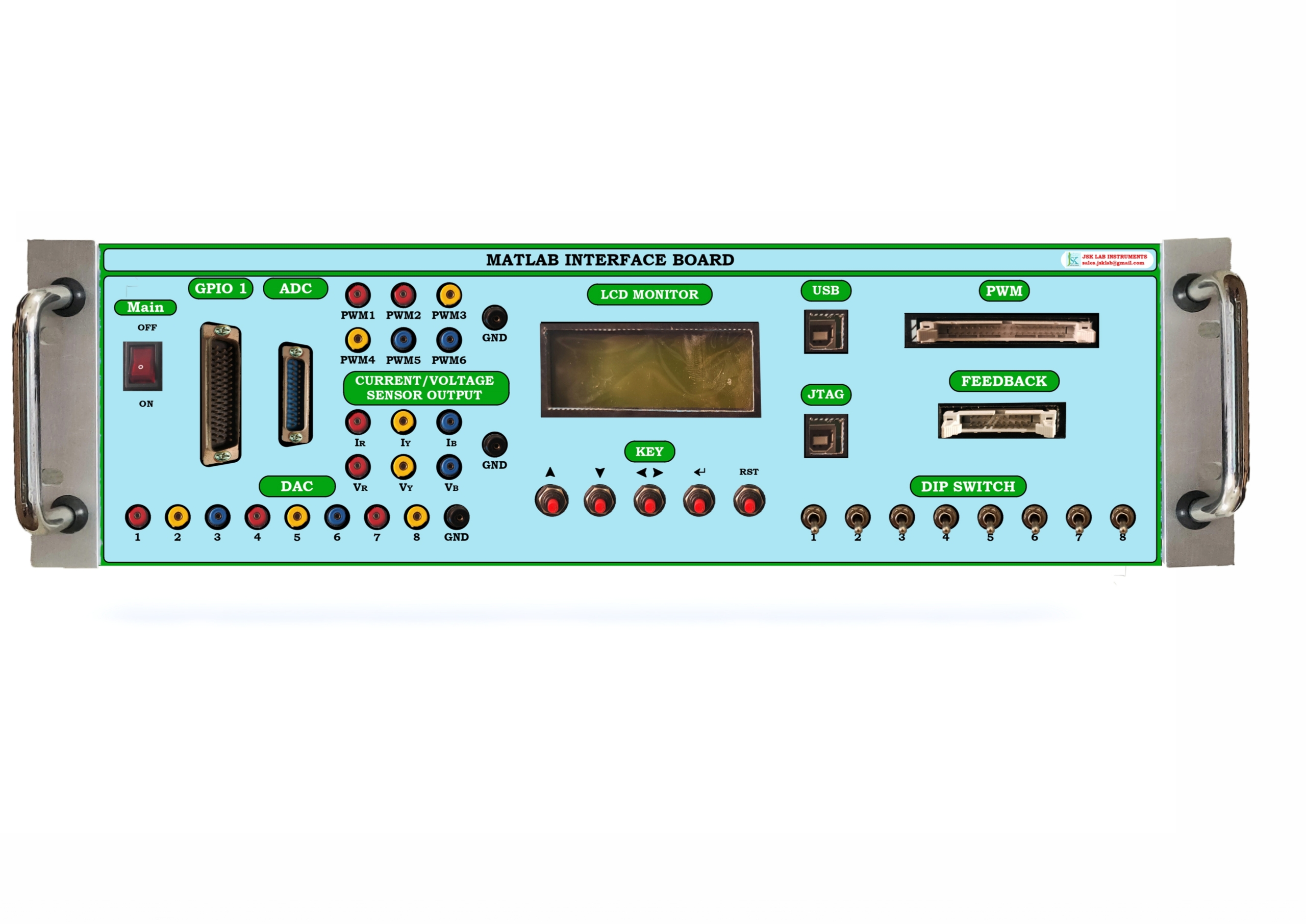

Matlab /FPGA Interface Board
Features
- 100 PWM ports
- 16 ADC inputs with ranges of -10 to +10 and 12bit resolution
- USB UART Protocol for communication with PC
- 4 DAC outputs
- 20X4 LCD Display
- 4 push switches for giving incremental input
- 8 Dip switches for ON/OFF input
MATLAB/FPGA/GUI
- HDL coder for FPGA implementation
- Pre-tested library blocks
- Sample AC, DC Drive Simulink Model
- GUI for Monitoring and Control with PYTHON/VEEPRO
- Data Storing in Excel-sheet for analysis
- Run time parameter changing and tuning
- Extended support for research
