Inverter’s

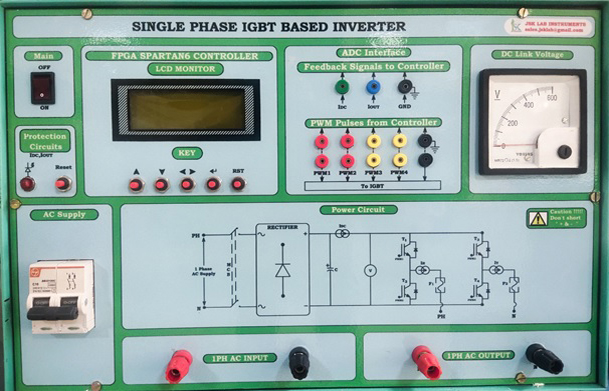

Single Phase Inverter

Basic Single phase inverter study and research trainer
Consists of two no. IGBT devices and bridge rectifier with a heat sink.
One no. of the dc link voltmeters
230V AC input power ON/OFF switch
All necessary test points are provided for external patching.
Providing all necessary accessories with the research cabinet
All are included with the cabinet with a front panel sticker with the circuit diagram.
A protection circuit is available to secure the module
We also provide fault detection
As per the customer satisfaction, we provide the components in the product.

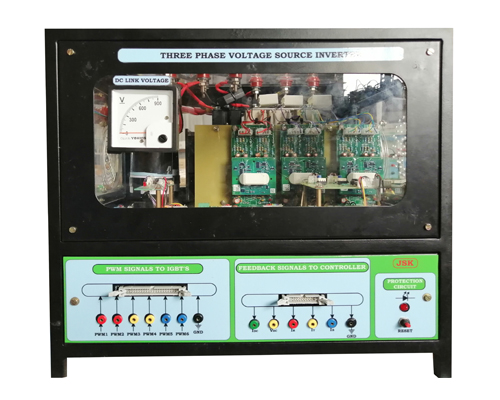

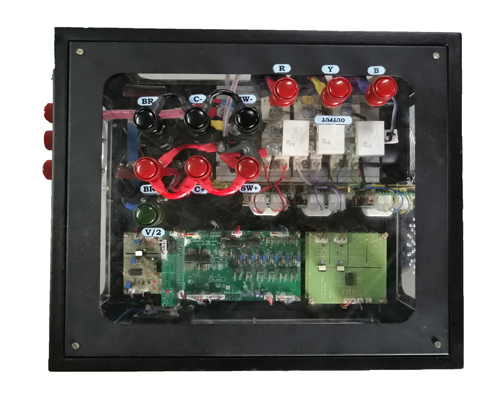

Basic Three-phase Inverter Study and Research Trainer
Consists of three no. IGBT devices and bridge rectifier with a heat sink.
One no. of the dc link voltmeters
230V AC input power ON/OFF switch
All necessary test points are provided for external patching.
Providing all necessary accessories with the research cabinet
All are included with the cabinet with a front panel sticker with the circuit diagram.
A protection circuit is available to secure the module
We also provide fault detection
As per the customer’s requirement, we provide the components of the product.

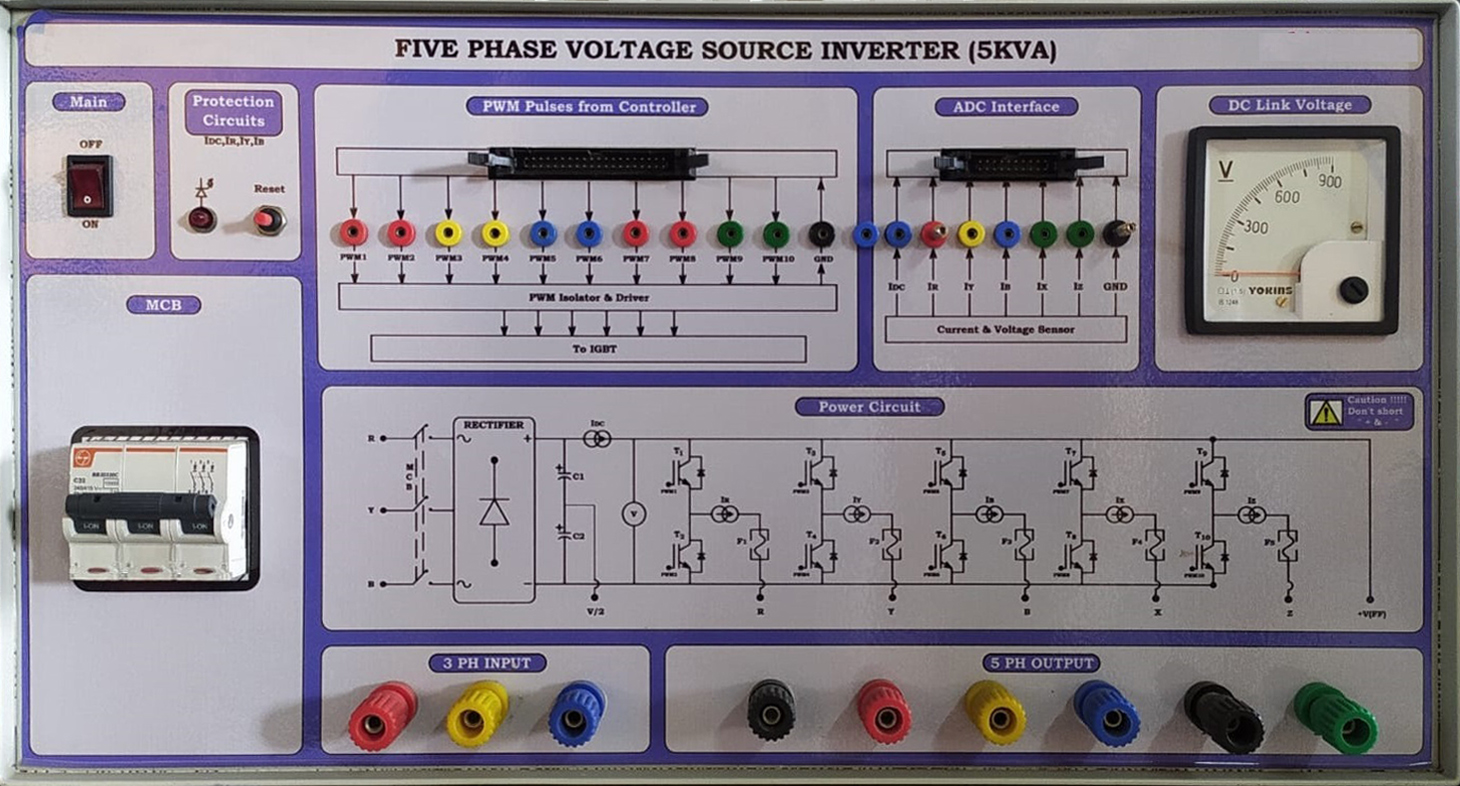

Basic Five-Phase inverter study and research trainer
Consists of five no. IGBT devices and bridge rectifier with a heat sink.
One no. of the dc link voltmeters
230V AC input power ON/OFF switch
All necessary test points are provided for external patching.
Providing all necessary accessories with the research cabinet
All are included with the cabinet with a front panel sticker with the circuit diagram.
A protection circuit is available to secure the module
We also provide fault detection
As per the customer’s requirement, we provide the components of the product.
