SILICON-CONTROLLED RECTIFIER
Single Phase SCR
This SCR power module is designed by using SCR & DIODE for AC-DC Controlled Converter applications This module can be used for DC Motor open-loop & closed-loop speed control applications.
Specification:
- SCR-based Half & Fully Controlled Converter
- Two numbers of Diode ( 35A, 1200V) with proper heat sink for cooling and Snubber circuit
-
- One number of 230/9V Supply synchronizing transformer & ZCD Circuit is provided for SCR Pulse generation
- MCB provided for input power ON/OFF
- SCR and diode outputs and AC inputs are terminated in the banana connector
- Specifications- Input- 230VAC, Output – 0-200V AC/DC @ 5A , Suitable for RL load & Motor Control applications
- All necessary test points are provided for external patching.
- Providing all necessary accessories with the research cabinet
- All are included with the cabinet with a front panel sticker with the circuit diagram.
- A protection circuit is available to secure the module
- We also provide fault detection
- As per the customer satisfaction, we provide the components in the product.
- We will make the inverter power rating aspire to the customer’s requirements.
For More details contact: 7667134364
SILICON-CONTROLLED RECTIFIER
Three Phase SCR

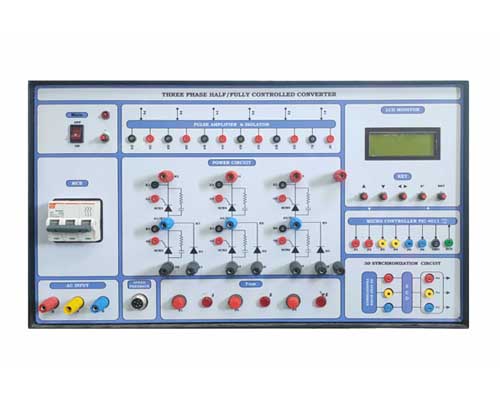

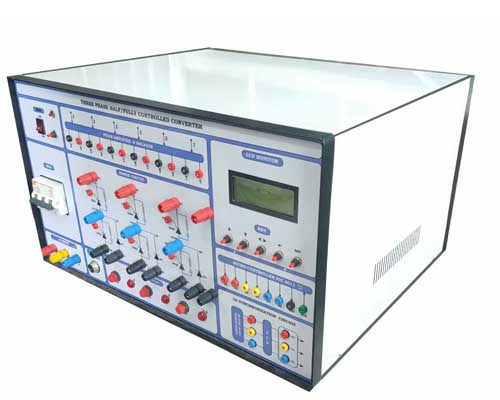

This Power Module is designed to study the working principle of Three three-phase SCR-based Half & fully controlled converter, AC regulator power circuit. This trainer consists of
- Three-phase SCR Firing pulse controller
- Three-phase SCR Power Module
- Three number of SKKT58B16E SCR with heat-sink is provided for the Power circuit
- One number of Digital- Firing circuits with firing angle adjustments (180-0degree)
- Keys are provided for firing angle adjustments
- Six Numbers of Pulse outputs are terminated for external Patching.
- 3 phase 24V,3Amp AC is provided for power circuit inputs
- One number of power resistors is provided as fixed R Load with terminations for External patching
- One number of Fixed inductors is provided as fixed L Load with terminations for External patching
- All are mounted on a nice cabinet with sticker front panel with mimic diagram
- Power circuit Input is 3 phase c24VAC (through a step-down transformer) &230VAC input with power ON/OFF Switch
- All necessary test points are provided for external patching.
- Providing all necessary accessories with the research cabinet
- All are included with the cabinet with a front panel sticker with the circuit diagram.
- A protection circuit is available to secure the module
- We also provide fault detection
- As per the customer satisfaction, we provide the components in the product.
- We will make the inverter power rating aspire to the customer’s requirements.
For More details contact: 7667134364
