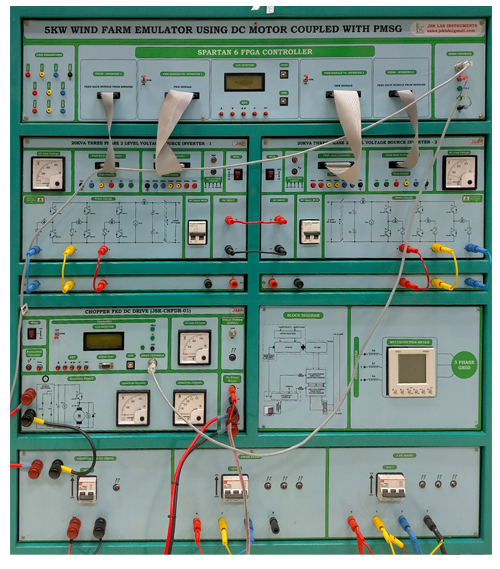

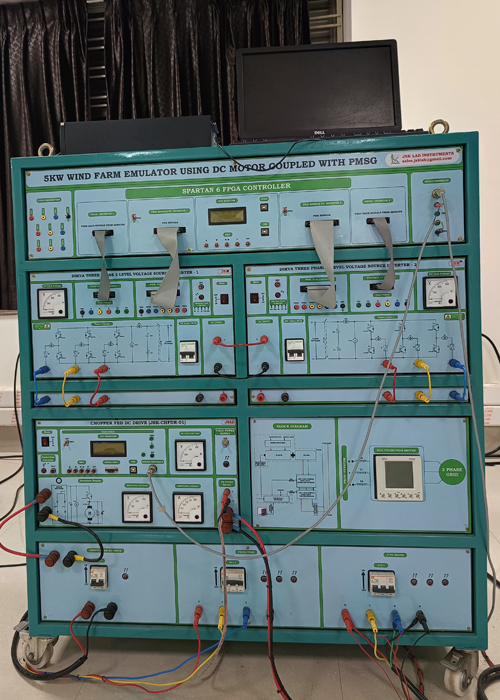

Wind Emulator using PMSG

2.5KW GRID-TIED INVERTER:

  1. 3KW IGBT Based 3PH VOLTAGE SOURCE INVERTER-2 No
  2. FPGA SPARTAN6 BASED CONTROLLER—–1 No
  3. GRID SIDE INTERFACE STUFF
  4. Chopper Fed DC Drive—-1 No
  5. DC Motor setup—-1 No
  6. 3ph AC PMSG motor setup—-1 No

2.3KW IGBT Based 3PH VOLTAGE SOURCE INVERTER:

MODEL NO-(JSK-3PHVSI-3KW)

  • Input:   1 Phase /3 phase 50 Hz AC.
  • Output:   400V/10A (MAX), AC/DC on each Leg of 3 phase Bridge
  • 3Nos 1200V, 100A SEMIKRON IGBT MODULE Used to form Inverter  Bridge.Each IGBT module consists of two IGBTs.
  • Built-in Short circuit,  over current & over Temperature Protection available.
  • 1200V, 60A Converter Bridge for AC-DC power conversion
  • 15v/2A SMPS power supply and converter used to generate 4nos of isolated  +15v supply for gate driver section.
  • 4 Nos of Hall Effect current sensors(LEM MAKE-LA25-P) to sense the DC Link current & 3 output Currents of the Inverter Bridge.
  • 6 nos of HCPL316J ic-based negative turn-off driver circuit will be used.
  • All the PWM signals are isolated using an optoisolator
  • Protection circuit for over current with LED indication
  • Optically Isolated Fault signal from the driver is given to the Embedded/DSP Controllers for protection.
  • Independent Power supplies for all isolated circuits.
  • 0-900V Voltmeter to Indicate the DC Link Voltage
  • All current, PWMS & Feedback are terminated at the Front panel
  • FRC Connectors are provided to Interface with the Embedded/DSP controllers
  • All the Input/output Lines are terminated at Banana sockets.
  • One no of 4inch cooling fan used to dissipate switching device heat
  • Soft-copy and hard-copy manuals will be provided.

GRID-SIDE INTERFACE STUFF

  1. LA25-P HALLEFFECT Current sensors with signal conditioner – 3 nos(25Amps  Current sensor), which is used to measure the grid side current.
  2. Three nos of hall effect voltage sensors(LV20-P) with signal conditioners are used to sense the grid voltage.
  3. 3Nos of Inductor Used to filter the grid side injected current.
  4. 3ph OP-AMP-based ZCD circuit used to generate synchronized PWM signals.

CHOPPER FED DC DRIVE

Product Specification:

  • Consists of two no. IGBT devices and bridge rectifier with heat sink.
  • One no. of the dc link voltmeters, also we providing the armature Voltage and current meter aspire your requirements.
  • 230V AC input power ON/OFF switch
  • All necessary test points are providing for external patching.
  • Providing all necessary accessories with the research cabinet
  • All are included with the cabinet with front panel sticker with the circuit diagram.
  • Production circuit is also available to secure the module while the sudden high voltage flows
  • We also providing the fault detection
  • Aspire the customer satisfaction we providing the components in the product.
  • We will make the inverter power rating aspire the customer requirements.
