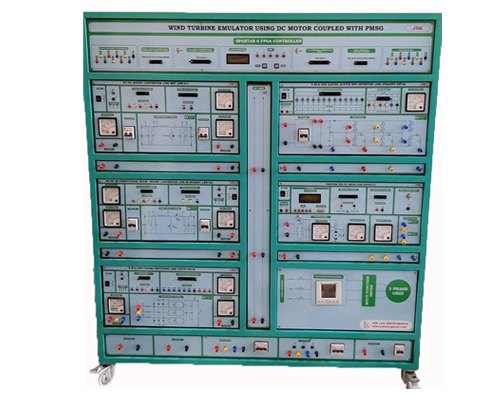

Wind Turbine Emulator Using – PMSG

Product Specification:

Inverters: VSI/VIENNA/NPC/H-BRIDGE types

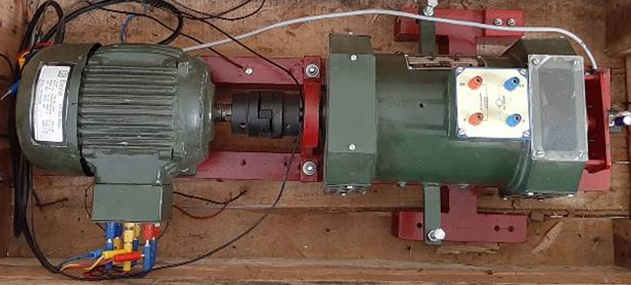

PMSG SETUP – 6KW DC Motor Coupled With 2.2KW PMSG

DC Motor Specifications:

  • Power: 2KW
  • Armature voltage: 220V DC
  • Field voltage: 220V DC
  • Speed: 1500 RPM
  • Double-side shaft extension

PMSG (Generator)

  • Type: Three-phase PMSG
  • Power: 2KW
  • Stator voltage: Three phase 230V AC,
  • Speed: 1500 RPM
  • DIRECT POWER CONTROL SCHEME FOR ACTIVE AND REACTIVE POWER
  • All necessary test points are provided for external patching.
  • All are included with the cabinet with a front panel sticker with the circuit diagram.
  • A protection circuit is available to secure the module
  • We also provide fault detection
  • As per customer satisfaction, we provide the components in the product.
  • We will make the inverter power rating aspire to the customer’s requirements.

For More details contact: 7667134364
